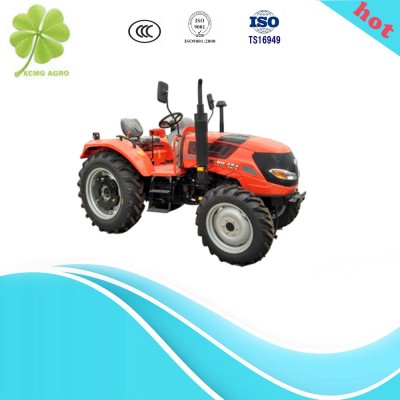

4 Wheel Tractor Sh454c 4WD 45HP
Basic Info
Model NO.: SH454C
Usage: Farm Tractor
Drive Wheel: 4WD
Fuel: Gas / Diesel
Size: Small
Condition: New
Trademark: SH
Specification: SGS
HS Code: 8701901190
Type: Wheel Tractor
Certification: ISO
Emission Standard: Euro II
Service Life: 6-10 Years
Color: Red
Power: 45HP
Transport Package: in 40′high Container
Origin: Shangdong
Product Description
The XCMG 454 Midsizel tractor is good appearance,
SH354 is dual-function type for towing and driving purposes and has the features of reasonable construction, harmonious outward appearance, easy operation, simple maintenance, ample and stable power output, good reliability and cross-country ability as well. It can be used for many farming jobs in dry and paddy fields, orchards and vegetable gardens with suitable farm implements attached, such as rotavator for rototilling, single-plow for ploughing and trailer for transportation.
Engine | ||
> Model | 495 | |
> Type | Vertical,4-Cylinder,Water Cooled and 4-stroke | |
> Rated Power | 35.4 kw(45HP) | |
> Rated speed | 2400rpm | |
> Stroke | 100mm | |
> Displacement | 2.9L | |
> Peak Torque | 170N.m/1800rpm | |
> Fuel | Diesel | |
> Compression Ratio | 17:1 | |
> Fuel Consumption | <250 g/kw.h | |
> Oil Consumption | <4.08g/kw.h | |
> Speed | <1000r/min | |
> Lubricating Way | Combined Pressure and Splashing | |
> Cooling System | Radiator and watertank | |
> Net Weight | 300Kg | |
> Dimensions | 850mm X 660mm X 800mm | |
Dimensions of Tractor | ||
> Length (to front ballast) | 3935mm | |
> Width | 1620mm | |
> Height (to the exhaust vent) | 2100mm | |
> Tread front wheel | 1280mm | |
> Tread rear wheel | 1300 Fixed or 1200~1500 Adjusted | |
> Axle Base | 2030 mm | |
> Min.Ground Clearance | 325mm | |
Transmission and Steering | ||
> Tractor type | 4 wheel driving tractor | |
> Operate weight | 1765kg | |
> Ballast weight | front ballast 140 kg / rear ballast 300 kg | |
> Rated traction force | 1100 kg | |
> Clutch | Dual-stage clutch | |
> Steering | Power steering | |
> Transmission Type | 8+4 or 8+8 with shuttle gearshift or (8+4)×2 with creeper shift | |
> Suspension Type | 3-point links | |
> PTO Type and Rev | Semi-independent Type 540/1000 | |
> PTO Spline Size | F35 Rectangle Spline with 6 teeth | |
> Tyre | Front Wheel 8.3-20 / Rear Wheel 12.4-28 |
